CXL5504M

CMOS-CCD 1H Delay Line for NTSC

CXL5504M Features

* Single power supply (5V)

* Low power consumption 90mW (Typ.)

* Built-in peripheral circuits

* Clamp level of I/O signal can be selected Functions

* 905-bit CCD register

* Clock driver

* Autobias circuit

* Input clamp circuit

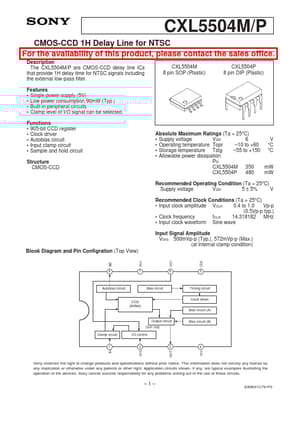

CXL5504M Datasheet (135.83 KB)

Preview of CXL5504M PDF

Datasheet Details

Part number:

CXL5504M

Manufacturer:

Sony Corporation

File Size:

135.83 KB

Description:

Cmos-ccd 1h delay line for ntsc.
