CXP1042Q - System Controller for Compact Disc Players

Product Overview

Sony Corporation

Part number	CXP1042Q
Manufacturer	Sony Corporation
File Size	562.59 KB
Description	System Controller for Compact Disc Players
Datasheet	CXP1042Q Datasheet

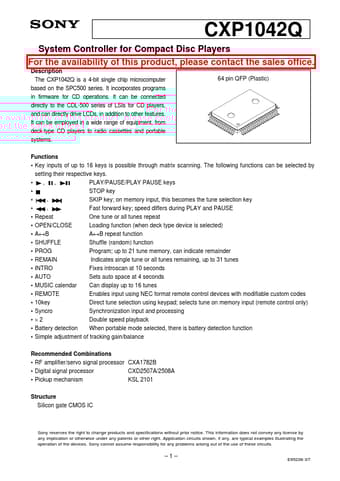

Additional preview pages of the CXP1042Q datasheet.

The CXP1042Q is a 4-bit single chip microcomputer based on the SPC500 series.

It can be employed in a wide range of equipment, from deck-type CD players to radio cassettes and portable systems. 64 pin QFP (Plastic) Functions.
Key inputs of up to 16 keys is possible through matrix scanning. The following functions can be selected by setting their respective keys. , ,.
PLAY/PAUSE/PLAY PAUSE keys.
STOP key ,.
SKIP key; on memory input, this becomes the tune selection key ,.
Fast forward key; speed differs during PLAY and PAUSE.
