CXP88224

CMOS 8-bit Single Chip Microcomputer

CXP88224 Features

* A wide instruction set (213 instructions) which cover various types of data

* 16-bit arithmetic instruction/multiplication and division instructions/boolean bit operation instruction

* Minimum instruction cycle During operation 250ns/16MHz, During operation 122µs/32kHz

CXP88224 General Description

The CXP88216/88220/88224 is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, vector interruption, high precision timing pattern generation circuits, PWM generator, PWM for tuner, VISS/VASS circuit, 32kHz timer/event counter, remote control.

CXP88224 Datasheet (478.68 KB)

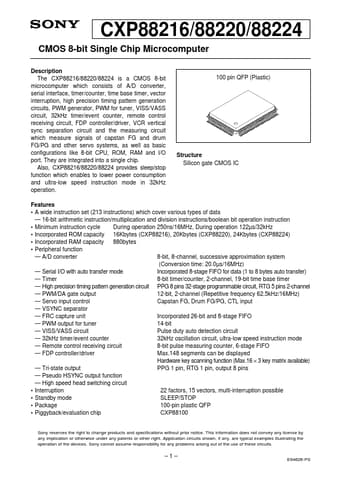

Preview of CXP88224 PDF

Datasheet Details

Part number:

CXP88224

Manufacturer:

Sony Corporation

File Size:

478.68 KB

Description:

Cmos 8-bit single chip microcomputer.
