ICX058AL - 1/3-inch CCD Image Sensor

Description

The ICX058AL is an interline CCD solid-state image sensor suitable for EIA black-and-white video cameras.

High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors.

Features

  • a field period readout system and an electronic shutter with variable charge-storage time. Features.
  • High resolution, high sensitivity and low dark current.
  • Continuous variable-speed shutter 1/60s (Typ. ), 1/100s to 1/10000s.
  • Low smear.
  • Excellent antiblooming characteristics.
  • Horizontal register: 5V drive.
  • Reset gate: 5V drive Device Structure.
  • Optical size:.
  • Number of effective pixels:.
  • Number of total pixels:.

📥 Download Datasheet

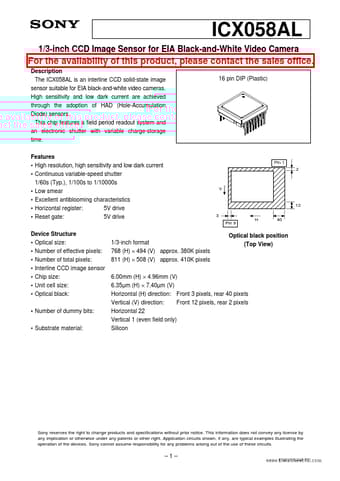

Datasheet preview – ICX058AL

📁 Similar Datasheet

Other Datasheets by Sony Corporation
  • ICX058ALB - Diagonal 6mm (Type 1/3) CCD Image Sensor
  • ICX058AK - 1/3-inch CCD Image Sensor
  • ICX058AKB - Diagonal 6mm (Type 1/3) CCD Image Sensor
  • ICX058CK - Diagonal 6mm (Type 1/3) CCD Image Sensor
  • ICX058CL - Diagonal 6mm (Type 1/3) CCD Image Sensor
  • ICX054AK - 1/3-inch CCD Image Sensor for NTSC Color Camera
  • ICX054AL - 1/3-inch CCD Image Sensor
  • ICX054BK - Diagonal 6mm (Type 1/3) CCD Image Sensor

Full PDF Text Transcription

Click to expand full text
ICX058AL 1/3-inch CCD Image Sensor for EIA Black-and-White Video Camera For the availability of this product, please contact the sales office. www.DataSheet4U.com Description The ICX058AL is an interline CCD solid-state image sensor suitable for EIA black-and-white video cameras. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors. This chip features a field period readout system and an electronic shutter with variable charge-storage time. Features • High resolution, high sensitivity and low dark current • Continuous variable-speed shutter 1/60s (Typ.
