ICX069AK - CCD Image Sensor

Description

The ICX069AK is an interline CCD solid-state image sensor suitable for PAL color video cameras.

High resolution is achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters.

Features

  • a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features.
  • High resolution, high sensitivity and low dark current.
  • Horizontal register: 3.6 to 5.0V drive.
  • No voltage adjustment (Reset gate and substrate bias are not adjusted. ).
  • Low smear.
  • Excellent antiblooming characteristics.
  • Continuous variable-speed shutter.
  • Ye, Cy, Mg, and G complementar.

📥 Download Datasheet

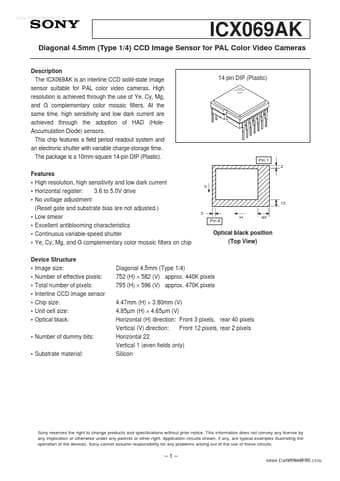

Datasheet preview – ICX069AK

📁 Similar Datasheet

Other Datasheets by Sony Corporation

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com ICX069AK Diagonal 4.5mm (Type 1/4) CCD Image Sensor for PAL Color Video Cameras Description The ICX069AK is an interline CCD solid-state image sensor suitable for PAL color video cameras. High resolution is achieved through the use of Ye, Cy, Mg, and G complementary color mosaic filters. At the same time, high sensitivity and low dark current are achieved through the adoption of HAD (HoleAccumulation Diode) sensors. This chip features a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features • High resolution, high sensitivity and low dark current • Horizontal register: 3.6 to 5.0V drive • No voltage adjustment (Reset gate and substrate bias are not adjusted.
