ICX284AK

Image Sensor with Square Pixel for Color Cameras

ICX284AK Features

* an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to when using field readout. Ye, Cy, Mg, G complementary color mosaic filters are used as the color filters, and at the same time high sensiti

ICX284AK General Description

The ICX284AK is a diagonal 6.64mm (Type 1/2.7) interline CCD solid-state image sensor with a square pixel array and 2.02M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/7.5 second. Also, the adoption of high frame rate readout mode suppor.

ICX284AK Datasheet (380.35 KB)

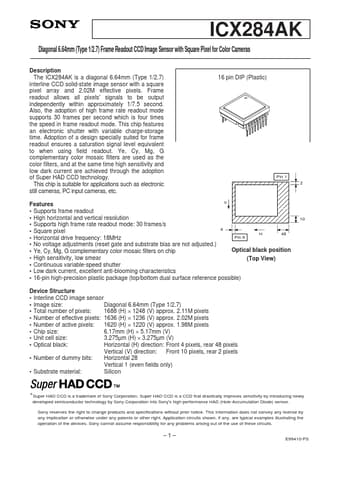

Preview of ICX284AK PDF

Datasheet Details

Part number:

ICX284AK

Manufacturer:

Sony Corporation

File Size:

380.35 KB

Description:

Image sensor with square pixel for color cameras.
