ILX506 - 5000-pixel CCD Linear Image Sensor

Description

The ILX506 is a reduction type CCD linear sensor developed for high resolution facsimiles and copiers.

This sensor reads A3-size documents at a density of 400 DPI (Dot Per Inch).

A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use.

Features

  • Number of effective pixels: 5000 pixels.
  • Pixel size: 7µm × 7µm (7µm pitch).
  • Built-in timing generator and clock-drivers.
  • Ultra low lag/ultra high sensitivity/low dark output.
  • Single output method.
  • Maximum clock frequency: 12.5MHz Absolute Maximum Ratings.
  • Supply voltage VDD1 VDD2.
  • Operating temperature.
  • Storage temperature Pin Configuration (Top View) 22 pin DIP (Ceramic) 11 6.
  • 10 to +60.
  • 30 to +80.

📥 Download Datasheet

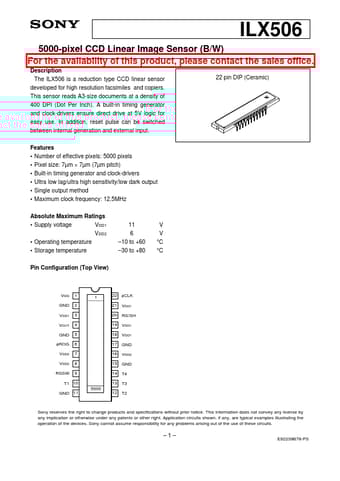

Datasheet preview – ILX506
