ILX718K Datasheet, Sensor, Sony Corporation

ILX718K Features

  • Sensor
  • Number of effective pixels: 16089 pixels (5363 pixels × 3)
  • Pixel size: 8µm × 8µm (8µm pitch)
  • Distance between line: 64µm (8 Lines)
  • Single-sided r

PDF File Details

Part number:

ILX718K

Manufacturer:

Sony Corporation

File Size:

142.21kb

Download:

📄 Datasheet

Description:

5363-pixel x 3 line ccd linear sensor. The ILX718K is a reduction type CCD linear sensor developed for color image scanner, and has shutter function per each color. This se

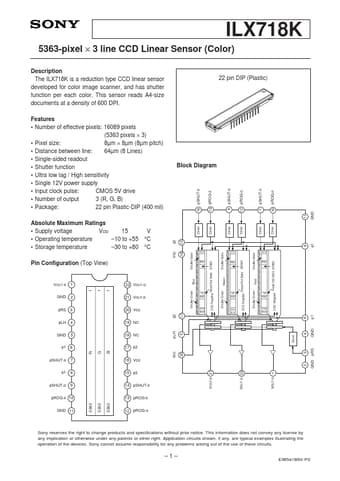

Datasheet Preview: ILX718K 📥 Download PDF (142.21kb)
Page 2 of ILX718K Page 3 of ILX718K
