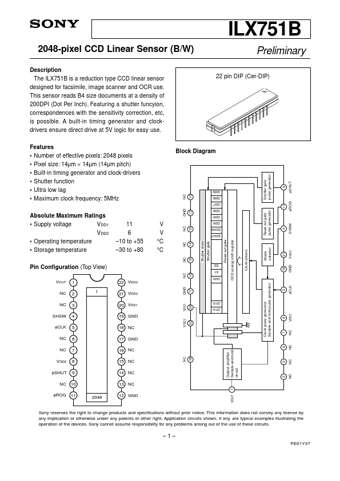

ILX751B - 2048-pixel CCD Linear Sensor

Sony Corporation

Datasheet Details

The ILX751B is a reduction type CCD linear sensor designed for facsimile, image scanner and OCR use.

Number of effective pixels: 2048 pixels.
Pixel size: 14µm × 14µm (14µm pitch).
Built-in timing generator and clock-drivers.
Shutter function.
Ultra low lag.
Maximum clock frequency: 5MHz Absolute Maximum Ratings.
Supply voltage VDD1 VDD2.
Operating temperature.
Storage temperature Pin Configuration (Top View) NC 16 Preliminary 22 pin DIP (Cer-DIP) Block Diagram Shutter gate pulse generator NC 10 GND Read out.
