ICX206AKB - CCD Image Sensor

ICX206AKB Description

ICX206AKB Diagonal 4.5mm (Type 1/4) CCD Image Sensor for NTSC Color Video Cameras .
The ICX206AKB is an interline CCD solid-state image sensor suitable for NTSC color video cameras.

ICX206AKB Features

* a field period readout system and an electronic shutter with variable charge-storage time. Also, this outline is miniaturized by using original package. Features
* Maximum package dimensions: φ8mm
* High sensitivity (+4dB compared with ICX086AKB)
* High saturation signal (+2.

📥 Download Datasheet

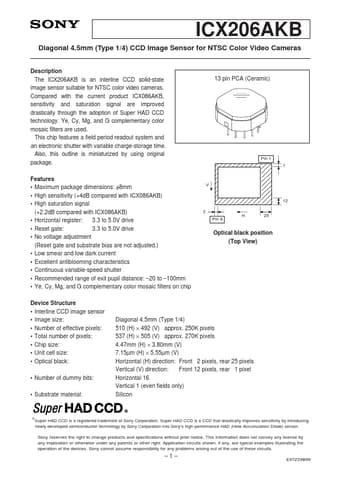

Preview of ICX206AKB PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICX206AKB
Manufacturer
Sony
File Size
193.33 KB
Datasheet
ICX206AKB_Sony.pdf
Description
CCD Image Sensor
