ICX625ALA

Diagonal 11.016mm (Type 2/3) Progressive Scan CCD Image Sensor

ICX625ALA Datasheet (809.65 KB)

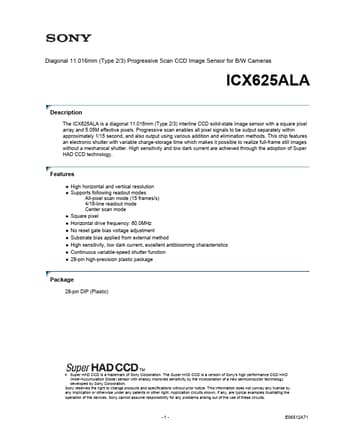

Preview of ICX625ALA PDF Datasheet

Datasheet Details

Part number:

ICX625ALA

Manufacturer:

Sony

File Size:

809.65 KB

Description:

Diagonal 11.016mm (type 2/3) progressive scan ccd image sensor

ICX625ALA Features

* an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still images without a mechanical shutter. High sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology. Features

* High horizontal and vertical resolution

ICX625ALA General Description

The ICX625ALA is a diagonal 11.016mm (Type 2/3) interline CCD solid-state image sensor with a square pixel array and 5.05M effective pixels. Progressive scan enables all pixel signals to be output separately within approximately 1/15 second, and also output using various addition and elimination met.
