IMX377EQH5 - Diagonal 7.81mm (Type 1/2.3) approximately 12.35M effective pixels CMOS Image Sensor

Product Overview

Sony

📥 Download Datasheet

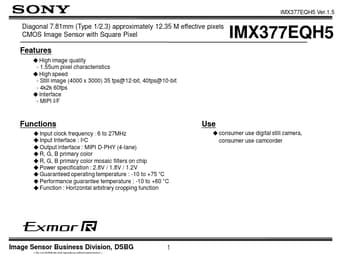

IMX377EQH5 Diagonal 7.81mm (Type 1/2.3) approximately 12.35M effective pixels CMOS Image Sensor by Sony - Datasheet Preview — Datasheet preview – IMX377EQH5

Datasheet Details

Part number	IMX377EQH5
Manufacturer	Sony
File Size	198.31 KB
Description	Diagonal 7.81mm (Type 1/2.3) approximately 12.35M effective pixels CMOS Image Sensor
Datasheet	IMX377EQH5 Datasheet
Additional preview pages of the IMX377EQH5 datasheet.

Product details

Features

High image quality - 1.55um pixel characteristics.
High speed - Still image (4000 x 3000) 35 fps@12-bit, 40fps@10-bit - 4k2k 60fps.
Interface - MIPI I/F Functions.
Input clock frequency ：6 to 27MHz.
Input Interface : I2C.
Output interface : MIPI D-PHY (4-lane).
R, G, B primary color.
R, G, B primary color mosaic filters on chip.
Power specification : 2.8V / 1.8V / 1.2V.
Guaranteed operating temperature : -10 to +75 ˚C.
Performance guarante.
