GFMB5 - FM US Band

📥 Download Datasheet

Datasheet Details

Part number GFMB5
Manufacturer Soshin
File Size 78.15 KB
Description FM US Band
Datasheet download datasheet GFMB5 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GFMK2545 Trench SCHOTTKY Diodes Yangzhou Yangjie
GFMK3045 Trench SCHOTTKY Diodes Yangzhou Yangjie
GFMM High Voltage Ceramic Capacitor Stacks Vishay Siliconix
GFMQ High Voltage Ceramic Capacitor Stacks Vishay

Other Datasheets by Soshin

Part Number Description
GFMB1 FM US Band
GFMB3 FM US Band
GFMB6 FM US Band
GFMB7 FM US Band

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

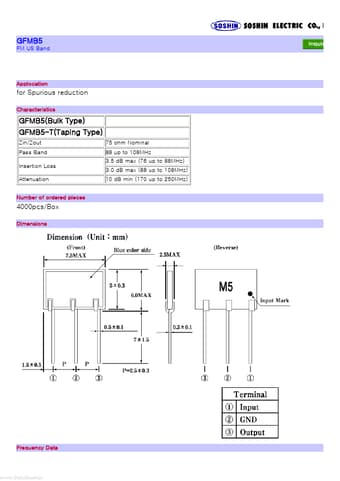

GFMB5 FM US Band Applocation for Spurious reduction Characteristics GFMB5(Bulk Type) GFMB5-T(Taping Type) Zin/Zout Pass Band Insertion Loss Attenuation Number of ordered pieces 75 ohm Nominal 88 up to 108MHz 3.5 dB max (76 up to 88MHz) 3.0 dB max (88 up to 108MHz) 10 dB min (170 up to 250MHz) 4000pcs/Box Dimensions Frequency Data www.DataSheet.in www.DataSheet.
