NF3000C-YXB Inverter

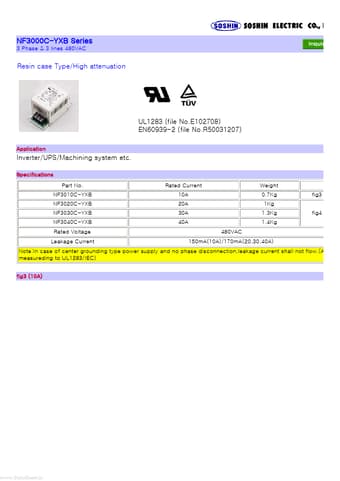

NF3000C-YXB Series 3 Phase & 3 lines 480VAC Resin case Type/High attenuation UL1283 (file No.E102708) EN60939-2 (file No.R50031207) Application Inverter/UPS/Machining system etc. Specifications Part No. NF3010C-YXB NF3020C-YXB NF3030C-YXB NF3040C-YXB Rated Voltage Leakage Current Rated Current 10A 20A 30A 40A 480VAC 150mA(10A)/170mA(20,30,40A) Weight 0.7Kg 1Kg 1.3Kg 1.4Kg fig4 fig3 Note:In case of center grounding type power supply and no phase disconnection,leakage current shall not flow.(A.

NF3000C-YXB Datasheet (131.24 KB)
