NF3010A-YXH Datasheet - Soshin

NF3010A-YXH Resin case Type/High attenuation

NF3000A-YXH Series 3 Phase & 3 lines 250VAC Resin case Type/High attenuation UL1283 (file No.E102708) EN60939-2 (file No.R50031314) Application Inverter/UPS/Machining system etc. Specifications Part No. NF3010A-YXH NF3020A-YXH NF3030A-YXH NF3040A-YXH NF3050A-YXH NF3060A-YXH Rated Voltage Rated Current 10A 20A 30A 40A 50A 60A 250VAC max fig4 fig3 Leakage Current 15mA max 250VAC 60Hz fig3 (10,20,30A) www.DataSheet.in fig4 (40,50,60A) Frequency Data www.DataSheet.in Circuit Diagram www.Dat.

NF3010A-YXH Datasheet (119.47 KB)

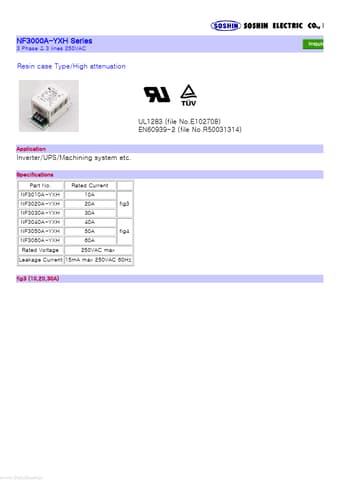

Preview of NF3010A-YXH PDF
NF3010A-YXH Datasheet Preview Page 2 NF3010A-YXH Datasheet Preview Page 3

Datasheet Details

Part number:

NF3010A-YXH

Manufacturer:

Soshin

File Size:

119.47 KB

Description:

Resin case type/high attenuation.
