NF3030A-VZ Datasheet - Soshin

NF3030A-VZ A smallest type for industrial purpose

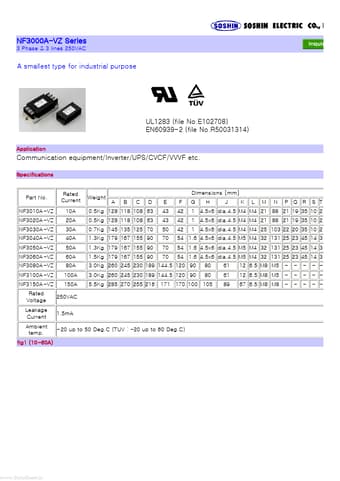

NF3000A-VZ Series 3 Phase & 3 lines 250VAC A smallest type for industrial purpose UL1283 (file No.E102708) EN60939-2 (file No.R50031314) Application Communication equipment/Inverter/UPS/CVCF/VVVF etc. Specifications Rated Current 10A 20A 30A 40A 50A 60A 80A 100A 150A 250VAC 1.5mA -20 up to 50 Deg.C (TUV : -20 up to 60 Deg.C) Dimensions [mm] A B C D E 43 43 50 70 70 70 F 42 42 42 G H J K L M N P Q R S T 1 4.5x6 dia.4.5 M4 M4 21 88 21 19 35 10 2 1 4.5x6 dia.4.5 M4 M4 21 88 21 19 35 10 2 1 4.5x6.

NF3030A-VZ Datasheet (287.21 KB)
