NF4000A-BY Datasheet - Soshin

NF4000A-BY 4 Lines Type Root 3 times current

NF4000A-BY Series 3 Phase & 4 lines 250VAC 4 Lines Type Root 3 times current on neutral line is available. UL1283 (file No.E102708) Application Inverter/UPS/CVCF Specifications Part No. NF4035A-BY NF4050A-BY NF4070A-BY NF4100A-BY NF4170A-BY Rated Current 35A 50A 70A 100A 170A Weight Dimensions [mm] A B C D E F1 F2 G H J K L1 L2 M N P R3.25 L8 R3.25 L8 R3.25 L8 R3.25 L8 R3.25 L8 3.8Kg 255 230 215 200 140 110 5.7Kg 340 300 280 260 200 170 7.0Kg 340 300 280 260 200 170 30 80 40 15 M5 M6 M4 di.

NF4000A-BY Datasheet (129.13 KB)

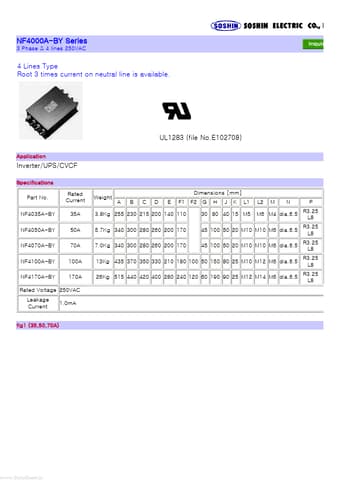

Preview of NF4000A-BY PDF

Datasheet Details

Part number:

NF4000A-BY

Manufacturer:

Soshin

File Size:

129.13 KB

Description:

4 lines type root 3 times current.
