SV421ET0014 VOC

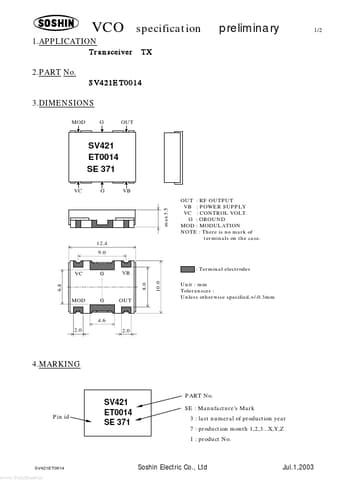

VCO 1.APPLICATION Transceiver 2.PART No. specification TX preliminary 1/2 SV421ET0014 3.DIMENSIONS MOD G OUT SV421 ET0014 œ VC SE 371 G VB SIDE VIEW 12.4 9.0 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND MOD : MODULATION NOTE : There is no mark of terminals on the case. max3.5 VC 6.8 G VB 10.0 8.0 : Terminal electrodes Unit : mm Toleransces : Unless otherwise specified,+/-0.3mm BOTTOM VIEW MOD G OUT 4.6 2.0 2.0 4.MARKING PART No. Pin id œ S.
