SV562CD0006 Datasheet (Soshin)

SV562CD0006, VOC

VCO 1.APPLICATION W-CDMA 2.PART No.

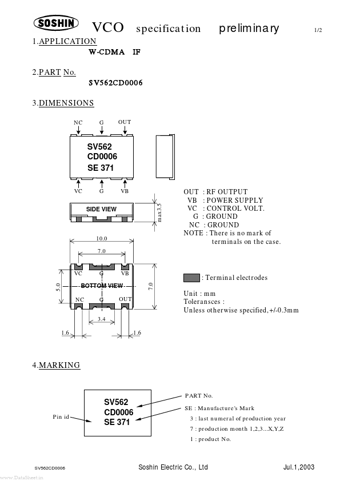

specification IF preliminary 1/2 SV562CD0006 3.DIMENSIONS NC G OUT œ VC SV562 CD0006 SE 371 G SIDE VIEW VB max3.5 10.0 7.0 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT.

G : GROUND NC : GROUND NOTE : There is no mark of terminals on the case.

VC 5.0 G VB 7.0 : Terminal electrodes Unit : mm Toleransces : Unless otherwise specified, +/-0.3mm BOTTOM VIEW NC G 3.4 1.6 1.6 OUT 4.MARKING PART No.

Pin id œ SV562 CD0006 SE 371
