SV808WT0013 Datasheet - Soshin

SV808WT0013 VOC

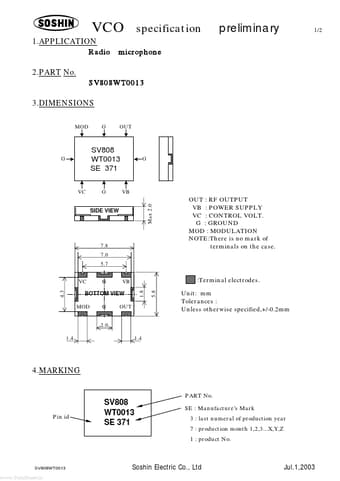

VCO 1.APPLICATION Radio 2.PART No. specification preliminary 1/2 microphone SV808WT0013 3.DIMENSIONS MOD G OUT G œ VC SV808 WT0013 SE 371 G VB G SIDE VIEW 7.8 7.0 5.7 VC 4.3 G VB 1.8 5.8 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND MOD : MODULATION NOTE:There is no mark of terminals on the case. Max 2.0 :Terminal electrodes. Unit: mm Tolerances : Unless otherwise specified,+/-0.2mm BOTTOM VIEW MOD G 2.0 1.4 OUT 1.4 4.MARKING PART No. Pin id .
