BXMP1031 - RF AMPLIFIER

Datasheet Summary

Features

! ! ! ! Ultra High IP2:+73 dBm Typical High IP3: +40 dBm Typical High Output Power: +28.5 dBm Typical Unconditionally Stable Typical Ta= 25 ºC 50 - 100 MHz 13.5 28.5 -22 1.5:1 1.5:1 5.5 +15 250 Medium Power Amplifier Available as: BXMP1031, SMA Connectorized Housing www. DataSheet4U. com Typical Intermodulation Performance at 25 º C Second Order Harmonic Intercept Point +77 dBm (Typ. ) Second Order Two Tone Intercept Point +73 dBm (Typ. ) Third Order Two Tone Intercept Point +40 dBm (Typ. ) Sp.

Spectrum Microwave

📥 Download Datasheet

Datasheet Details

Part number	BXMP1031
Manufacturer	Spectrum Microwave
File Size	86.65 KB
Description	RF AMPLIFIER
Datasheet	BXMP1031 Datasheet
Additional preview pages of the BXMP1031 datasheet.

📁 Similar Datasheet

BXM326RD - BX-M326RD (American Bright Optoelectronics)

Other Datasheets by Spectrum Microwave

BXMP1030 - RF AMPLIFIER
BXMP1032 - RF AMPLIFIER
BXMP1033 - RF AMPLIFIER
BXMP1034 - RF AMPLIFIER
BXMP1035 - RF AMPLIFIER
BXMP1036 - RF AMPLIFIER
BXMP1037 - RF AMPLIFIER
BXMP1038 - RF AMPLIFIER

Full PDF Text Transcription

Click to expand full text

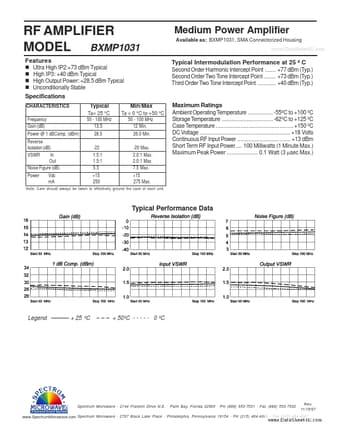

RF AMPLIFIER MODEL BXMP1031 Features ! ! ! ! Ultra High IP2:+73 dBm Typical High IP3: +40 dBm Typical High Output Power: +28.5 dBm Typical Unconditionally Stable Typical Ta= 25 ºC 50 - 100 MHz 13.5 28.5 -22 1.5:1 1.5:1 5.5 +15 250 Medium Power Amplifier Available as: BXMP1031, SMA Connectorized Housing www.DataSheet4U.com Typical Intermodulation Performance at 25 º C Second Order Harmonic Intercept Point ....... +77 dBm (Typ.) Second Order Two Tone Intercept Point ........ +73 dBm (Typ.) Third Order Two Tone Intercept Point ............ +40 dBm (Typ.) Specifications CHARACTERISTICS Min/Max Ta = 0 ºC to +50 ºC 50 - 100 MHz 12 Min. 26.0 Min. -20 Max. 2.0:1 Max. 2.0:1 Max. 7.5 Max. +15 275 Max. Maximum Ratings Ambient Operating Temperature ................
