PV14K3225

Low & Medium Voltage Plastic Encapsulated SMD Varistor

PV14K3225 Features

* AC operating voltage (Vrms) from 11V to 300V DC operating voltage (Vdc) from 14V to 385V Insensitive to water cleaning procedures and to humidity according to the climate category 55/125/56 +85ºC continuous

PV14K3225 General Description

Stackpole Electronics, Inc. Resistive Product Solutions The PV Series is a line of surface mount plastic-encapsulated varistors designed to protect electronic equipment against high voltage surges in the low and medium voltage region. They offer direct SMD equivalents to 5mm and 7mm leaded disc v.

PV14K3225 Datasheet (83.57 KB)

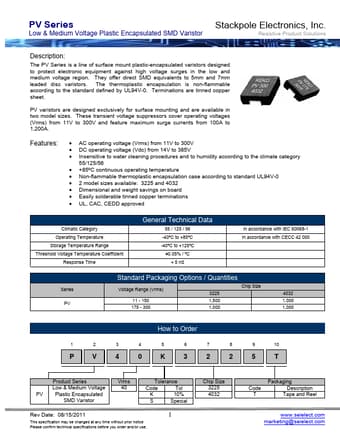

Preview of PV14K3225 PDF

Datasheet Details

Part number:

PV14K3225

Manufacturer:

Stackpole Electronics

File Size:

83.57 KB

Description:

Low & medium voltage plastic encapsulated smd varistor.
