RSM3xxx - (RS Series) Metal Oxide Resistors

Product Overview

Stackpole Electronics

Datasheet Details

Part number	RSM3xxx
Manufacturer	Stackpole Electronics
File Size	1.63 MB
Description	(RS Series) Metal Oxide Resistors
Datasheet	RSM3xxx Datasheet
Note	This datasheet PDF includes multiple part numbers: RSM3xxx, RSM2222. Please refer to the document for exact specifications by model.

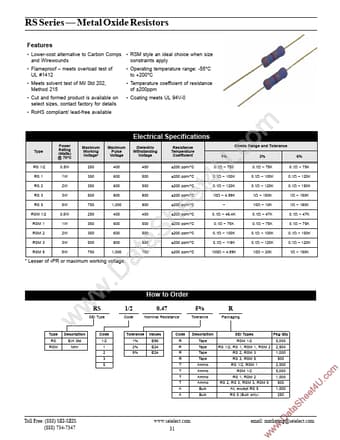

Additional preview pages of the RSM3xxx datasheet.

Product details

Description

EIA Std Mini m o .c U 4 t e e h S a t a .D w w w Electrical Specifications Resistance Temperature Coefficient ±200 ppm/°C Maximum Working Voltage 250 Maximum Pulse Voltage 400 Dielectric Withstanding Voltage 400 1% 2% 0.1Ω 75K 0.1Ω 75K 350 350 500 600 600 800 500 500 800 ±200 ppm/°C ±200 ppm/°C ±200 ppm/°C 0.1Ω 100K 0.1Ω 120K 10Ω 4.99K 0.1Ω 100K 0.1Ω 120K 1Ω 150K 750 1,000 400 800 ±200 ppm/°C 10Ω

Features

Lower-cost alternative to Carbon Comps.
RSM style an ideal choice when size and Wirewounds constraints apply.
Flameproof.
meets overload test of UL #1412.
Meets solvent test of Mil Std 202, Method 215.
Cut and formed product is available on select sizes, contact factory for details.
RoHS compliant/ lead-free available.
Operating temperature range: -55°C to +200°C.
Temperature coefficient of resistance of ±200ppm.
