ST301 Datasheet (Stafford) - Temperature Controller User Handbook

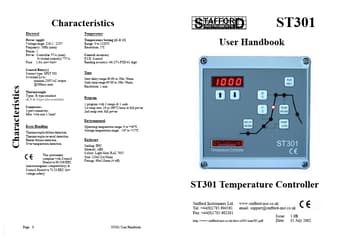

ST301, Temperature Controller User Handbook

Characteristics Electrical Power supply Voltage range: 216.2 - 253V Frequency: 50Hz (nom) Phases: 1 Power: Controller 3VA (max) Switched output(s) 75VA Fuse: 1.0A slow-blow Control Relay(s) Contact type: SPST NO Switched Live nominal 230VAC output @300mA max.

Thermocouple Types: R type standard (K,N & S type also available) Connectors 2-part connectors Max.

wire size 2.5mm² Temperature Temperature Setting (t1 & t2) Range: 0 to 1320ºC Resolution: 1ºC Control Accuracy P.I.D.

Control Reading accura
