SGB-2433

DC - 4 GHz Active Bias Gain Block

SGB-2433 Features

* a Class 1C ESD rating, low thermal resistance , and unconditional stability. The SGB-2433 product is designed for high linearity 3V gain block applications that require small size and minimal external components. It is on chip matched to 50 ohm and an external bias inductor choke is required for the

SGB-2433 General Description

Sirenza Microdevices’ SGB-2433 is a high performance SiGe HBT MMIC amplifier utilizing a Darlington configuration with an active bias network. The active bias network provides stable current over temperature and process Beta variations. Designed to run directly from a 3V to 5V supply the SGB-2433 do.

SGB-2433 Datasheet (197.05 KB)

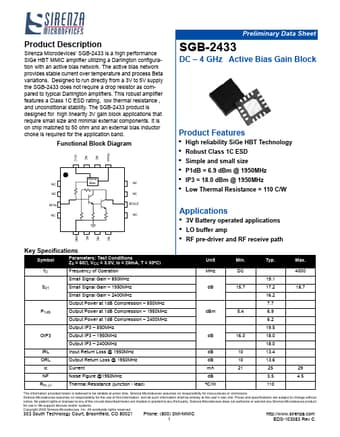

Preview of SGB-2433 PDF

Datasheet Details

Part number:

SGB-2433

Manufacturer:

Stanford Microdevices

File Size:

197.05 KB

Description:

Dc - 4 ghz active bias gain block.
