SSW-108

DC-4 GHz High Isolation GaAs MMIC SPDT Switch

SSW-108 Features

* High Isolation: 32dB at 2GHz

* Low DC Power Consumption

* Non-reflective

* Broadband Performance - True DC Operation

* Low Cost Small Outline Plastic Package Applications

* Analog/Digital Wireless System

* Spread Spectrum

* GPS Switch

SSW-108 General Description

Stanford Microdevices’ SSW-108 is a high performance Gallium Arsenide Field Effect Transistor MMIC switch housed in a low-cost surface-mountable small outline plastic package. This single-pole, double-throw, non-reflective switch consumes less than 50uA and operates at -5V and 0V for control bias. I.

SSW-108 Datasheet (83.13 KB)

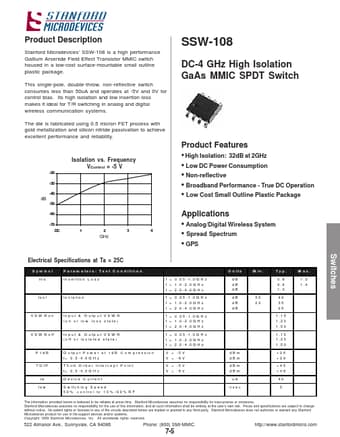

Preview of SSW-108 PDF

Datasheet Details

Part number:

SSW-108

Manufacturer:

Stanford Microdevices

File Size:

83.13 KB

Description:

Dc-4 ghz high isolation gaas mmic spdt switch.
