SSW-208

DC-4 GHz High Isolation GaAs MMIC SPDT Switch

SSW-208 Features

* High Isolation: 22dB at 2GHz

* Low DC Power Consumption

* Low Insertion Loss: 0.9dB at 2GHz

* Broad Performance - True DC Operation

* Low Cost Small Outline Plastic Package Applications

* Analog/Digital Wireless System

* Spread Spectrum

SSW-208 General Description

Stanford Microdevices’ SSW-208 is a high perfomance Gallium Arsenide Field Effect Transistor MMIC switch housed in a low-cost surface-mountable small outline plastic package. This single-pole, double-throw, non-reflective switch consumes less than 50uA and operates at -5V and 0V for control bias. It.

SSW-208 Datasheet (79.47 KB)

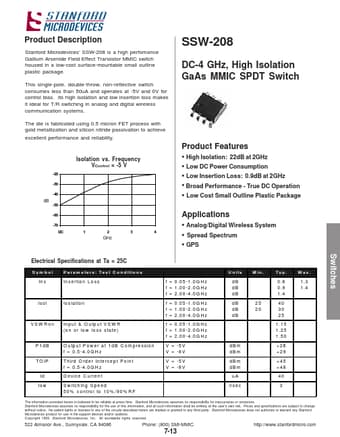

Preview of SSW-208 PDF

Datasheet Details

Part number:

SSW-208

Manufacturer:

Stanford Microdevices

File Size:

79.47 KB

Description:

Dc-4 ghz high isolation gaas mmic spdt switch.
