SSW-308

DC-3 GHz Low Cost GaAs MMIC SPDT Switch

SSW-308 Features

* Fast Switching Speed : 3nsec

* HIgh LInearity : +47dBm IP3

* Ultra Low DC Power Consumption

* Low Insertion Loss : 0.7dB at 1GHz

* Low Cost Small Outline Plastic Package Applications

* Digital Cellular

* Spread Spectrum dB -30 -40 -50 D C 1

SSW-308 General Description

Stanford Microdevices’ SSW-308 is a high perfomance Gallium Arsenide Field Effect Transistor MMIC switch housed in a low-cost surface-mountable small outline plastic package. This single-pole, double-throw, reflective switch consumes less than 40uA and operates with 0V/-5V control voltages. This swi.

SSW-308 Datasheet (80.12 KB)

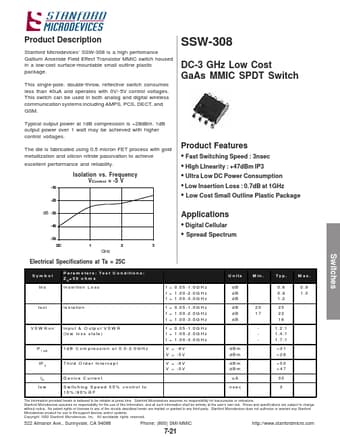

Preview of SSW-308 PDF

Datasheet Details

Part number:

SSW-308

Manufacturer:

Stanford Microdevices

File Size:

80.12 KB

Description:

Dc-3 ghz low cost gaas mmic spdt switch.
