SWCM331, SWCM331-Star Datasheet - Star-wing

SWCM331 Low Power Low Offset Voltage Single Comparator

The SWCM331 consists of a single precision voltage comparator with a typical input offset voltage of 1.0mV and high gain. It is specifically designed to operate from a single power supply over wide range of voltage. Operation from split power supply is also possible and the low power supply current .

SWCM331 Features

* ˙Wide Supply Voltage Range: Single Supply: 2.0V to 36V Dual Supplies: ±1.0V to ±18V ˙Low Supply Current at VCC=5V: 0.4mA ˙Low Input Bias Current: 25nA (Typical) ˙Low Input Offset Current: ±5.0nA (Typical) ˙Low Input Offset Voltage: 1.0mV (Typical) ˙Input Common Mode Voltage Range Includes Ground ˙Di

SWCM331-Star-wing.pdf

This datasheet PDF includes multiple part numbers: SWCM331, SWCM331-Star. Please refer to the document for exact specifications by model.

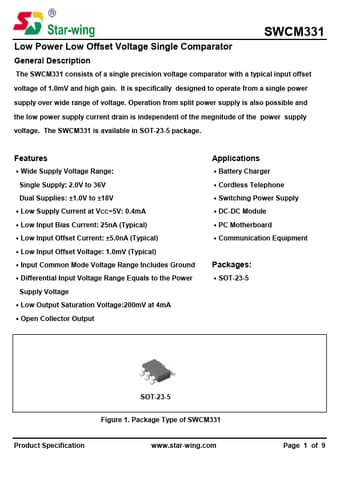

SWCM331 Datasheet Preview Page 2 SWCM331 Datasheet Preview Page 3

Datasheet Details

Part number:

SWCM331, SWCM331-Star

Manufacturer:

Star-wing

File Size:

797.01 KB

Description:

Low power low offset voltage single comparator.

Note:

This datasheet PDF includes multiple part numbers: SWCM331, SWCM331-Star.
Please refer to the document for exact specifications by model.
