SCT2110 - 8-bit Serial-In/Parallel In-Out Constant-Current LED Driver

SCT2110 Description

StarChips Technology SCT2110 V03_01; Mar/08 8-bit Serial-In/Parallel-Out Constant-Current LED Driver Product .
The SCT2110 serial-interfaced LED driver sinks 8 LED clusters with constant current to keep the uniform intensity of LED displays.

SCT2110 Features

* 8 constant-current outputs rate at 17V Constant current range: 5
* 160mA Excellent current regulation to load, supply voltage and temperature ±3% Current matching between outputs ±6% Current matching between ICs Fast output current control: Minimum PWM pulse width = 100ns All output current

SCT2110 Applications

* an external resistor is used to set the full-scale constant output current from 5mA up to 160mA. The SCT2110 guarantees each output can endure maximum 17V DC voltage stress. The built-in shift registers and data latches making the SCT2110 effective solution in driving LED display. The output enable

📥 Download Datasheet

Preview of SCT2110 PDF

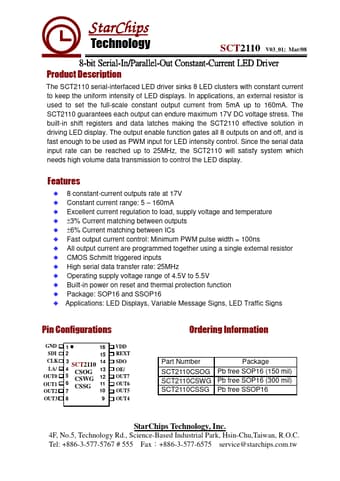

datasheet Preview Page 2 datasheet Preview Page 3
