EEH2023 - General Power Transformer

Description

25.0 ~ 24.0mm Max.(L

~ W), 24.0mm Max.

Height.

E In addition to the typical versions of parameters shown here, custom designs are available to meet your exact requirements Ÿ E

Operating frequency 500kHz.

Max.

📥 Download Datasheet

Datasheet preview – EEH2023

Datasheet Details

Part number EEH2023
Manufacturer Sumida Corporation
File Size 98.25 KB
Description General Power Transformer
Datasheet download datasheet EEH2023 Datasheet
Additional preview pages of the EEH2023 datasheet.

📁 Similar Datasheet

  • EEHAZF1E151 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHAZF1E271 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHAZF1H101 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHAZF1H560 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHAZF1J330 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHAZF1J560 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHAZF1V101 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHAZF1V151 - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHZE1E221P - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
  • EEHZE1E221V - Conductive Polymer Hybrid Aluminum Electrolytic Capacitors (Panasonic)
Other Datasheets by Sumida Corporation

Full PDF Text Transcription

Click to expand full text

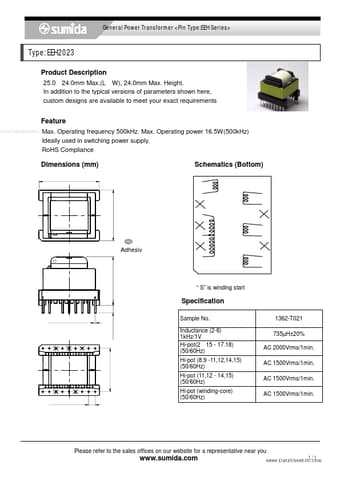

General Power Transformer Type: EEH2023 •Ÿ •E Product Description 25.0•~ 24.0mm Max.(L•~ W), 24.0mm Max. Height. •E In addition to the typical versions of parameters shown here, custom designs are available to meet your exact requirements •Ÿ •E •E Feature Operating frequency 500kHz. Max. Operating power 16.5W(500kHz) Ideally used in switching power supply. RoHS Compliance www.DataSheet4U.com •E Max. •Ÿ Dimensions (mm) 25 Max. •Ÿ Schematics (Bottom) ‡H S ‡G S1 S2 ‡I ‡J ‡K S 24 Max. ‡F ‡E ‡D S ‡C N2 S3 ‡L ‡M S ‡N N1 Adhesiv 24 Max. ‡B S ‡A ‡O S4 ‡P ‡Q S ‡@ “ S” is winding start •Ÿ 13-ƒ Ó 0.6• } 0.1 3.4•}0.5 Specification Sample No. Inductance (2-6) 1kHz/1V Hi-pot(2•` 15 - 17.
