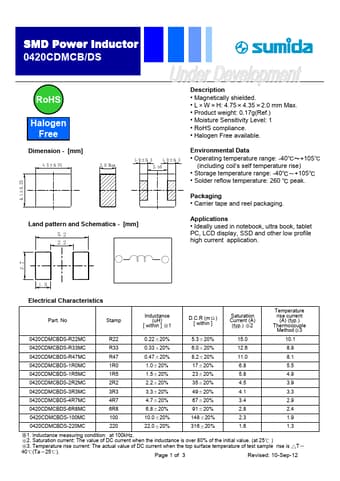

0420CDMCBDS-6R8MC Datasheet | Sumida

SMD Power Inductor 0420CDMCB/DS Description - Magnetically shielded. - L W H: 4.75 4.35 2.0 mm Max. - Product weight: 0.17g(Ref.) - Moisture Sensitivity Level: 1 - Ro HS pliance. - Halogen Free available. Ro HS Halogen Free Dimension - [mm] 4.5±0.25 5 2 . 0 ± 1 . 4 2.0 Max 1.0±0.3 2.50 1.0±0.3 × × × × Environmental Data - Operating temperature range: -40 +105 (including coil’s self temperature rise) - Storage temperature range: -40 +105 - Solder reflow temperature: 260 peak. Packaging - Carrier tape and reel packaging. ℃～ ℃ ℃～ ℃ ℃ Land pattern and Schematics - [mm] 5.2 2.2 http://..net/ Applications - Ideally used in notebook, ultra book, tablet PC, LCD display, SSD and other low profile high current application. 7 . 2 1.5 Electrical Characteristics Part. No Stamp Inductance (u H) [ within ] 1 ※ D.C.R (m ) [ within...
