0420CDMCBDS-R22MC

SMD Power Inductor

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Sumida Corporation 0420CDMCBDS-R22MC FIXED IND 220NH 10.1A 5.3MOHM SM DigiKey 0 0
$0

0420CDMCBDS-R22MC Datasheet (226.15 KB)

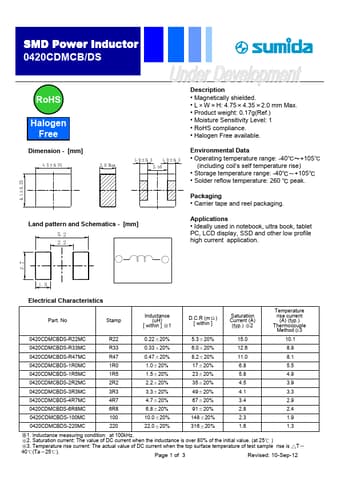

Preview of 0420CDMCBDS-R22MC PDF Datasheet

Datasheet Details

Part number:

0420CDMCBDS-R22MC

Manufacturer:

Sumida

File Size:

226.15 KB

Description:

Smd power inductor

0420CDMCBDS-R22MC General Description



* Magnetically shielded.

* L W H: 4.75 4.35 2.0 mm Max.

* Product weight: 0.17g(Ref.)

* Moisture Sensitivity Level: 1

* RoHS compliance.

* Halogen Free available. RoHS Halogen Free Dimension - [mm] 4.5±0.25 5 2 . 0 ± 1 . 4 2.0 Max 1.0±0.3 2.50 1.0±0.3.
