0420CDMCDS-1R0MC

SMD Power Inductor

0420CDMCDS-1R0MC Datasheet (211.69 KB)

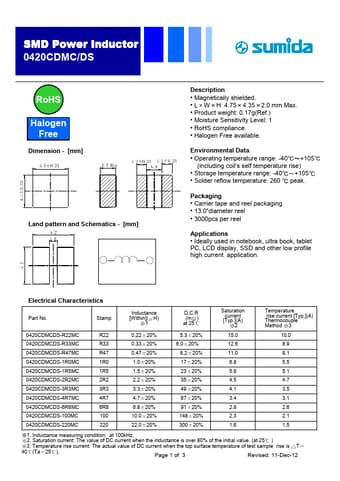

Preview of 0420CDMCDS-1R0MC PDF Datasheet

Datasheet Details

Part number:

0420CDMCDS-1R0MC

Manufacturer:

Sumida

File Size:

211.69 KB

Description:

Smd power inductor

0420CDMCDS-1R0MC General Description



* Magnetically shielded.

* L W H: 4.75 4.35 2.0 mm Max.

* Product weight: 0.17g(Ref.)

* Moisture Sensitivity Level: 1

* RoHS compliance.

* Halogen Free available. RoHS Halogen Free Dimension - [mm] 4.5±0.25 5 2 . 0 ± 1 . 4 2.0 Max 1.3±0.25 1.3±0.25 1..
