CAD10D30
CAD10D30 is LF Receiver Antenna manufactured by Sumida.

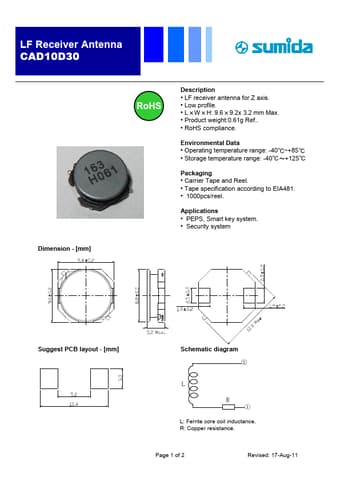

LF Receiver Antenna CAD10D30
Dimension
- [mm]
RoHS
Description
- LF receiver antenna for Z axis.
× × ×- Low profile.
- L W H: 9.6 9.2x 3.2 mm Max.
- Product weight:0.61g Ref..
- RoHS pliance.
Environmental Data
℃ ℃- Operating temperature range: -40 ~+85 ℃～ ℃- Storage temperature range: -40 +125
Packaging
- Carrier Tape and Reel.
- Tape specification according to EIA481.
- 1000pcs/reel.
Applications
- PEPS, Smart key system.
- Security system
Suggest PCB layout
- [mm]
Schematic diagram
②
R①
L: Ferrite core coil inductance. R: Copper resistance.
Page 1 of 2
Revised: 17-Aug-11
LF Receiver Antenna CAD10D30
Electrical Characteristics
Part...
