CD105T125NP-101KC

SMD Power Inductor

Sumida

CD105T125NP-101KC General Description

* Ferrite durm core construction. × × × ×

* Magnetically unshielded.

* L W H: 10.4 9.4 5.8mm Max.

* Product weight:1.3 g(Ref.)

* Moisture Sensitivity Level: 1

* RoHS compliance.

* Qualification to AEC-Q200. Dimension - [mm] φ10.0±0.4 9.0±0.4 .

CD105T125NP-101KC Datasheet (256.00 KB)

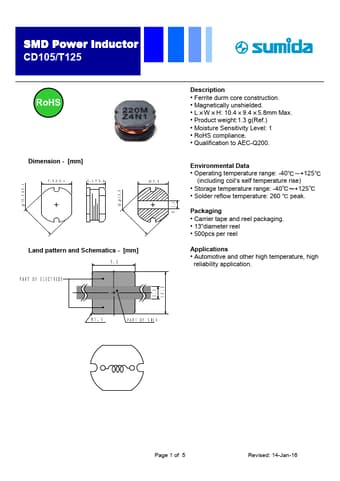

CD105T125NP-101KC Datasheet Preview — Preview of CD105T125NP-101KC PDF

Datasheet Details

Part number:

CD105T125NP-101KC

Manufacturer:

Sumida

File Size:

256.00 KB

Description:

Smd power inductor.
