CD75

SMD Power Inductor

CD75 General Description



* Ferrite drum core construction. × × × ×

* Magnetically unshielded.

* L W H: 8.1 7.3 5.5mm Max.

* Product weight: 0.76g(Ref.)

* Moisture Sensitivity Level: 1

* RoHS compliance.

* Halogen Free available. ℃~ ℃Environmental Data

* Operati.

CD75 Datasheet (235.76 KB)

Preview of CD75 PDF

Datasheet Details

Part number:

CD75

Manufacturer:

Sumida

File Size:

235.76 KB

Description:

Smd power inductor.

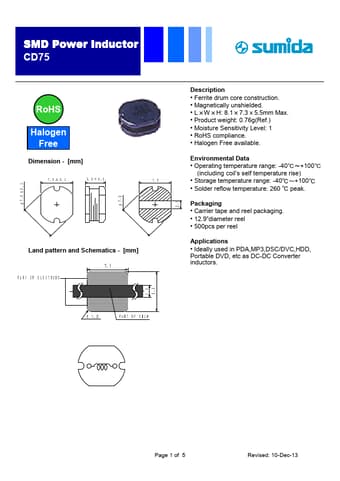

SMD Power Inductor CD75 RoHS Halogen Free Dimension - [mm] φ7.8±0.3 7.0±0.3 5.0±0.5 φ7.8 7.0 Land pattern and Schematics - [mm] PART OF ELECTROD.
