CD75T125NP-220KC

SMD Power Inductor

CD75T125NP-220KC General Description



* Ferrite drum core construction. × × × ×

* Magnetically unshielded.

* L W H: 8.1 7.3 5.5mm Max.

* Product weight: 0.76g(Ref.)

* Moisture Sensitivity Level: 1

* RoHS compliance.

* Qualification to AEC-Q200. ℃～ ℃Environmental Data

* Oper.

CD75T125NP-220KC Datasheet (236.14 KB)

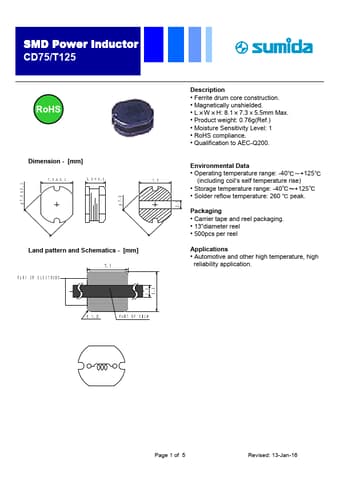

Preview of CD75T125NP-220KC PDF

Datasheet Details

Part number:

CD75T125NP-220KC

Manufacturer:

Sumida

File Size:

236.14 KB

Description:

Smd power inductor.
SMD Power Inductor CD75/T125 RoHS Dimension - [mm] φ7.8±0.3 7.0±0.3 5.0±0.5 φ7.8 7.0 Land pattern and Schematics - [mm] PART OF ELECTRODE 7.5 2.
