CDEP159NP-150MC-220 Datasheet, Inductor, Sumida

PDF File Details

Part number:

CDEP159NP-150MC-220

Manufacturer:

Sumida

File Size:

274.44kb

Download:

📄 Datasheet

Description:

Smd power inductor.

Ferrite core construction. × × × ×

Magnetically shielded.

L W H: 15.5 15.4 10.0 mm Max.

Produc

CDEP159NP-150MC-220 Application

• Applications

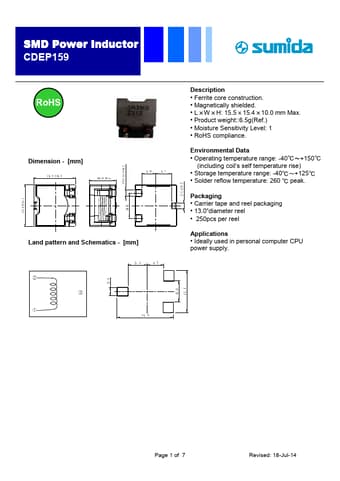

• Ideally used in personal computer CPU power supply. 6.0 12.0 Page 1 of 7 Revised: 18-Jul-14 SMD Power Inductor CDEP159 E
