CDRH10D43RNP-101MC Datasheet - Sumida

SMD Power Inductor

CDRH10D43RNP-101MC General Description

* Ferrite drum core construction. × × × * Magnetically shielded. * L W H:10.8 10.5 x 4.5mm Max. * Product weight: 1.6g (Ref.) * Moisture Sensitivity Level: 1 * RoHS compliance. ℃～ ℃Environmental Data * Operating temperature range: -40 +105 (i.

CDRH10D43RNP-101MC Datasheet (173.69 KB)

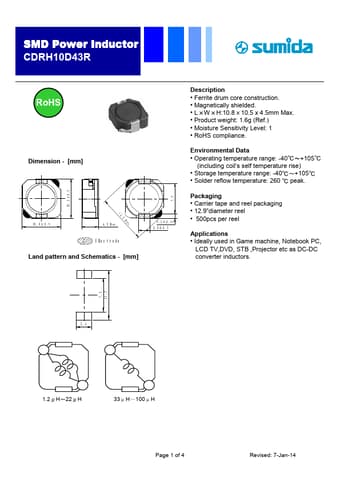

Preview of CDRH10D43RNP-101MC PDF

Datasheet Details

Part number:

CDRH10D43RNP-101MC

Manufacturer:

Sumida

File Size:

173.69 KB

Description:

Smd power inductor.
SMD Power Inductor CDRH10D43R RoHS Dimension - [mm] 10.0±0.5 0.5 10.3± 4.5 Max.13.5Max. Electrode Land pattern and Schematics - [mm] 7.9 1.2±0.
