CDRH124NP-180MC, CDRH124 - SMD Power Inductor

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CDRH124NP-180MC, CDRH124. Please refer to the document for exact specifications by model.

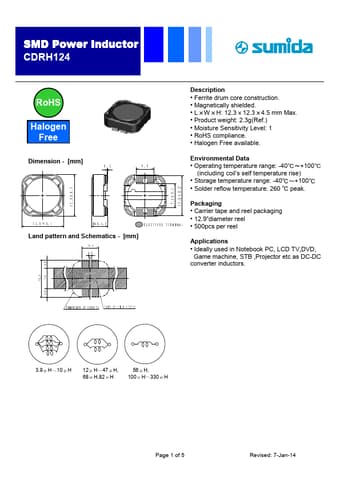

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number CDRH124NP-180MC, CDRH124
Manufacturer Sumida
File Size 191.98 KB
Description SMD Power Inductor
Datasheet download datasheet CDRH124_SumidaCorporation.pdf
Note This datasheet PDF includes multiple part numbers: CDRH124NP-180MC, CDRH124.
Please refer to the document for exact specifications by model.

CDRH124NP-180MC Product details

Description

Ferrite drum core construction. Magnetically shielded. L W H: 12.3 12.3 4.5 mm Max. Product weight: 2.3g(Ref.) Moisture Sensitivity Level: 1 RoHS compliance. Halogen Free available. Operating temperature range: -40 +100 (including coil’s self temperature rise) ℃～ ℃ Storage temperature range: -40 +100 ℃0.2 7.6± 0.2 11.8
