CDRH40D18ANP-220N Datasheet, Inductor, Sumida

CDRH40D18ANP-220N Features

• Inductor ◎ Magnetically shielded construction. ◎ Storage temperature range: -40℃~+85℃. ◎ Operating temperature range: -40℃~+125℃ (Not including coil’s self-heat). ◎ RoHS Compliance and Halogen F

PDF File Details

Part number:

CDRH40D18ANP-220N

Manufacturer:

Sumida

File Size:

215.93kb

Download:

📄 Datasheet

Description:

Power inductor.

CDRH40D18ANP-220N Application

• Applications High temperature product, Used in automotive.

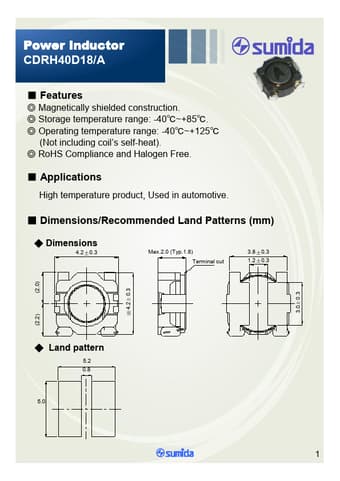

• Dimensions/Recommended Land Patterns (mm)
• Dimensions 4.2 ±0.3 www.
