CDRH40D28T125-1R5NC, CDRH40D28T125 SMD POWER INDUCTORS

CDRH40D28T125-1R5NC Description

SMD Power Inductor CDRH40D28/T125 .
Ferrite drum core construction. Magnetically shielded. L×W×H:4. Product weight:0.

CDRH40D28T125-1R5NC Applications

* Automotive application and other high temperature,high reliability application type withstand up to 125℃. Dimension - [mm] Recommended Land pattern - [mm] Wire Connection Note： This specification is subject to change without notice. Please contact your nearest sales office for updated i

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CDRH40D28T125-1R5NC, CDRH40D28T125. Please refer to the document for exact specifications by model.

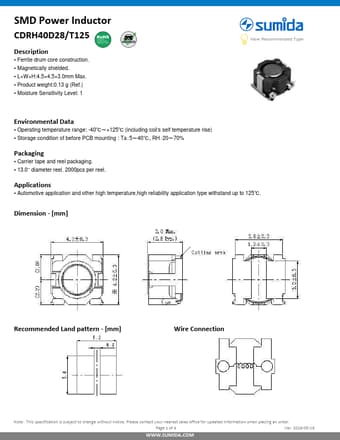

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CDRH40D28T125-1R5NC, CDRH40D28T125
Manufacturer
Sumida
File Size
309.91 KB
Datasheet
CDRH40D28T125-Sumida.pdf
Description
SMD POWER INDUCTORS
Note
This datasheet PDF includes multiple part numbers: CDRH40D28T125-1R5NC, CDRH40D28T125.
Please refer to the document for exact specifications by model.
