CEP1110 Pulse transformer

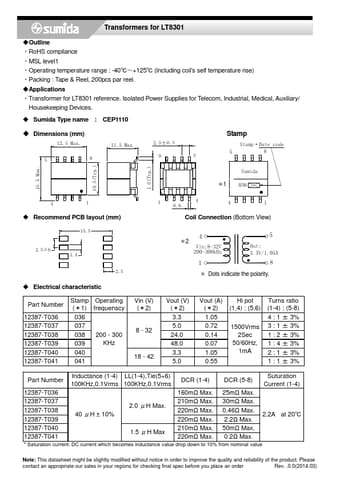

Transformers for LT8301 Outline RoHS compliance MSL level1 Operating temperature range : -40℃～+125℃ (Including coil’s self temperature rise) Packing : Tape & Reel, 200pcs par reel. Applications Transformer for LT8301 reference. Isolated Power Supplies for Telecom, Industrial, Medical, Auxiliary/ Housekeeping Devices. Sumida Type name : CEP1110 Dimensions (mm) 12.5 Max. 58 11.5 Max. 2.5±0.3 8 5 Stamp Stamp Date code 58 Sumida ＊1 036 15.5 Max. 10.5(Typ.) 1.0(Typ.).

CEP1110-Sumida.pdf

CEP1110 Datasheet Preview — Preview of CEP1110 PDF

Datasheet Details

Part number:

CEP1110

Manufacturer:

Sumida

File Size:

51.16 KB

Description:

Pulse transformer.
