ZMDK53W - 1.6x0.8mm SMD CHIP LED LAMP

Features

  • z1.6mmX0.8mm SMT LED, 1.1mm.

📥 Download Datasheet

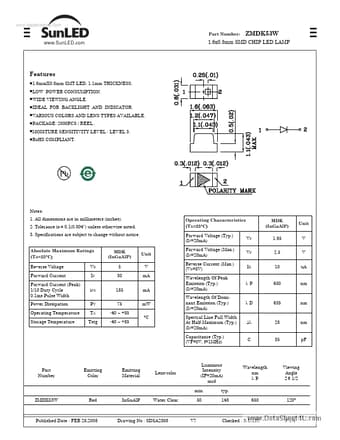

Datasheet preview – ZMDK53W

Datasheet Details

Part number ZMDK53W
Manufacturer SunLED Corporation
File Size 217.69 KB
Description 1.6x0.8mm SMD CHIP LED LAMP
Datasheet download datasheet ZMDK53W Datasheet
Additional preview pages of the ZMDK53W datasheet.

📁 Similar Datasheet

  • ZMD1 - SMD Zener Diodes (Diotec)
  • ZMD10 - SMD Zener Diodes (Diotec)
  • ZMD100 - SMD Zener Diodes (Diotec)
  • ZMD100B - Surface mount Silicon-Zener Diodes (Diotec Semiconductor)
  • ZMD10B - Surface mount Silicon-Zener Diodes (Diotec Semiconductor)
  • ZMD11 - SMD Zener Diodes (Diotec)
  • ZMD11B - Surface mount Silicon-Zener Diodes (Diotec Semiconductor)
  • ZMD12 - SMD Zener Diodes (Diotec)
  • ZMD12B - Surface mount Silicon-Zener Diodes (Diotec Semiconductor)
  • ZMD13 - SMD Zener Diodes (Diotec)
Other Datasheets by SunLED Corporation

Full PDF Text Transcription

Click to expand full text
www.datasheet4u.com Part Number: ZMDK53W www.SunLED.com 1.6x0.8mm SMD CHIP LED LAMP Features z1.6mmX0.8mm SMT LED, 1.1mm THICKNESS. zLOW POWER CONSUMPTION. zWIDE VIEWING ANGLE. zIDEAL FOR BACKLIGHT AND INDICATOR. zVARIOUS COLORS AND LENS TYPES AVAILABLE. zPACKAGE: 2000PCS / REEL . zMOISTURE SENSITIVITY LEVEL : LEVEL 3. zRoHS COMPLIANT. Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ± 0.1(0.004") unless otherwise noted. 3. Specifications are subject to change without notice. Absolute Maximum Ratings (TA=25°C) Reverse Voltage Forward Current Forward Current (Peak) 1/10 Duty Cycle 0.1ms Pulse Width Power Dissipation Operating Temperature Storage Temperature VR IF iFS PT TA Tstg Operating Characteristics (TA=25°C) Forward Voltage (Typ.
