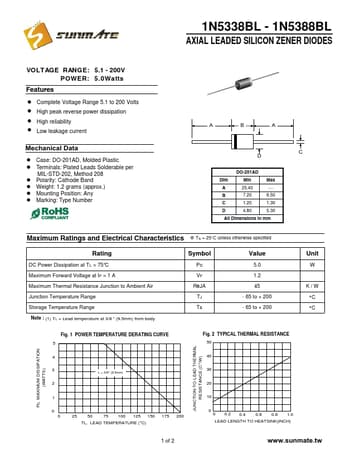

1N5365BL, 1N5338BL - SILICON ZENER DIODES

SunMate

Datasheet Details

Part number	1N5365BL, 1N5338BL
Manufacturer	SunMate
File Size	139.19 KB
Description	SILICON ZENER DIODES
Datasheet	1N5338BL-SunMate.pdf
Note	This datasheet PDF includes multiple part numbers: 1N5365BL, 1N5338BL. Please refer to the document for exact specifications by model.

! Complete Voltage Range 5.1 to 200 Volts ! High peak reverse power dissipation ! High reliability ! Low leakage current Mechanical Data ! Case: DO-201AD, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 1.2 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A D C DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electrical Characteri.
