2R3000S-5 Datasheet - SunMate

2R3000S-5 GAS DISCHARGE TUBES

2RS-5 SERIES GAS DISCHARGE TUBES GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Ruilon offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and hig.

2R3000S-5 Features

* ! SMD Structure ! DC Spark-over voltage: 1000~6000V ! Low Capacitance ! Agency Recognition : UL ! Operating temperature:-30°C ~ +85°C Storage temperature:-40°C ~ +115°C Mechanical Data ! Cable Modem ! xDSL ! Set-Top Box ! TV sets ! Power supplier ! Consumer electronics T Item D T D Dimensions Un

2R3000S-5 Datasheet (482.32 KB)

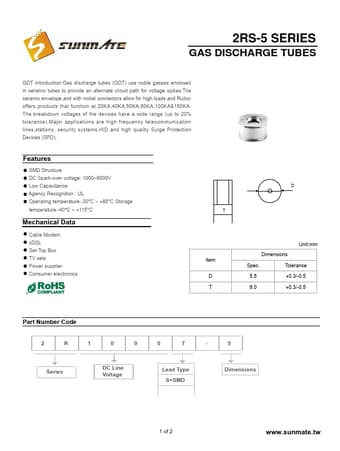

2R3000S-5 Datasheet Preview — Preview of 2R3000S-5 PDF

Datasheet Details

Part number:

2R3000S-5

Manufacturer:

SunMate

File Size:

482.32 KB

Description:

Gas discharge tubes.
