NZ9F11, NZ9F2V4S Datasheet - SunMate

NZ9F11 - SURFACE MOUNT SILICON ZENER DIODES

NZ9F11 Features

* Standard Zener Breakdown Voltage Range

* 2.4 V to 18 V

* Steady State Power Rating of 200 mW

* Small Body Outline Dimensions: 0.039″ x 0.024″ (1.00 mm x 0.60 mm)

* Low Body Height: 0.016 ″ (0.40 mm)

* ESD Rating of Class 3 (>16 kV) per Human Body Mode

NZ9F2V4S-SunMate.pdf

This datasheet PDF includes multiple part numbers: NZ9F11, NZ9F2V4S. Please refer to the document for exact specifications by model.

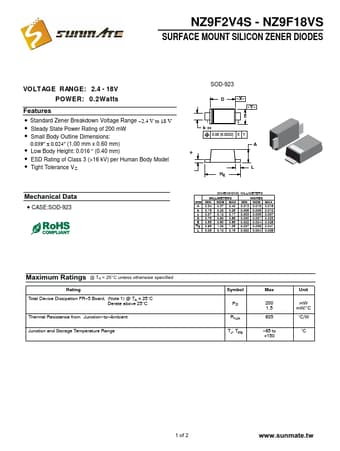

NZ9F11 Datasheet Preview Page 2

Datasheet Details

Part number:

NZ9F11, NZ9F2V4S

Manufacturer:

SunMate

File Size:

326.77 KB

Description:

Surface mount silicon zener diodes.

Note:

This datasheet PDF includes multiple part numbers: NZ9F11, NZ9F2V4S.
Please refer to the document for exact specifications by model.
