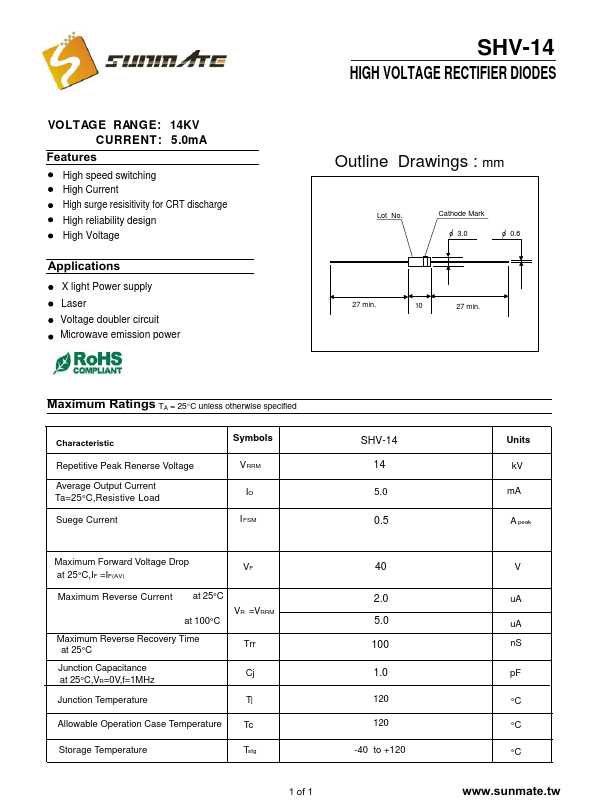

SHV-14
Features
High speed switching High Current High surge resisitivity for CRT discharge High reliability design High Voltage
Applications
X light Power supply Laser Voltage doubler circuit Microwave emission power
HIGH VOLTAGE RECTIFIER DIODES
Outline Drawings : mm
Lot No.
Cathode Mark o 3.0 o 0.6
27 min.
27 min.
Maximum Ratings TA = 25°C unless otherwise specified
Characteristic
Repetitive Peak Renerse Voltage Average Output Current Ta=25°C,Resistive Load
Suege Current
Symbols V RRM IO I FSM
Maximum Forward Voltage Drop
VF at 25°C,IF =IF(AV)
Maximum Reverse Current at 25°C at 100°C
VR =VRRM
Maximum Reverse Recovery Time at 25°C
Trr
Junction Capacitance
Cj at 25°C,VR=0V,f=1MHz
Junction Temperature
Tj
Allowable Operation Case Temperature Tc
Storage Temperature
Tstg
1 of 1
SHV-14 14 5.0 0.5
40 2.0 5.0 100 1.0 120 120 -40 to +120
Units k V m A A peak
V u A u A n S p F °C °C...
