SMAF220, SMAF5.0, SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

SMAF5.0A(CA) - SMAF440A(CA) SURFACE MOUNT TRANSIENT VOLAGE SUPPESSOR DIODE VOLTAGE RANGE: 5.0 - 440 V POWER: 400Wa t t s .

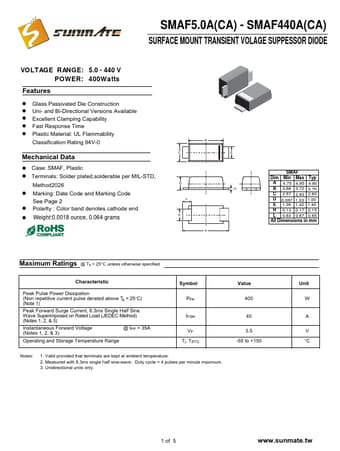

datasheet Preview Page 1 from Datasheet4u.com

SMAF5.0-SunMate.pdf

SMAF220 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMAF220, SMAF5.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMAF220, SMAF5.0

Manufacturer:

SunMate

File Size:

1.06 MB

Description:

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: SMAF220, SMAF5.0.
Please refer to the document for exact specifications by model.

Features

* ! Glass Passivated Die Construction ! Uni- and Bi-Directional Versions Available ! Excellent Clamping Capability ! Fast Response Time ! Plastic Material: UL Flammability Classification Rating 94V-0 B Mechanical Data C E ! Case: SMAF, Plastic ! Terminals: Solder plated,solderable per MIL-
